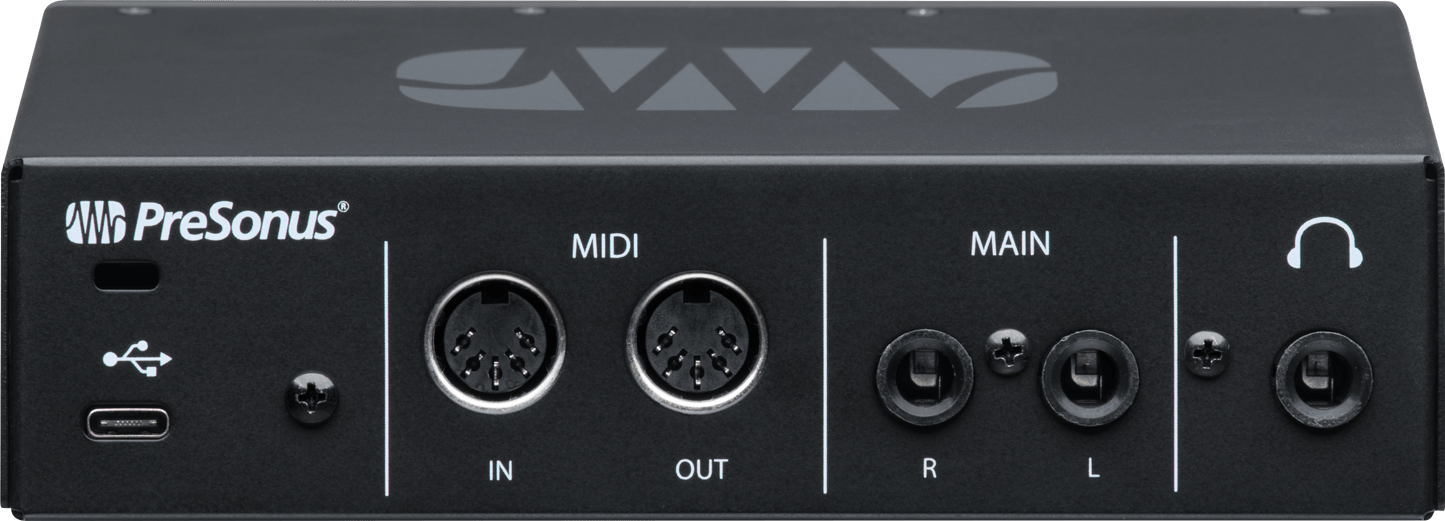

Revelator io24
Revelator io24
Couldn't load pickup availability
Overview
Flexible and versatile, Revelator io24 is the only audio interface designed for both recording and streaming. Get polished, professional results thanks to PreSonus XMAX-L microphone preamps and onboard processing that will make your stream, podcast, or recording stand out. Revelator io24's intuitive loopback mixer makes adding backing tracks, sound effects, or Skype interviews quick and easy. Quickly record Zoom calls for your podcast, add backing tracks to your live stream performance, and more.
Produce a great mix for your stream fast by engaging Stream Mix mode and with the click of a button, your complete DSP mix - analog inputs, loopback channels, reverb, and effects - are patched to the USB stream, where you can easily send it to your streaming software. No complex routing or extra hardware required.
Finally, you get professional audio software with a Fender Studio Pro 6 month trial so your productions will be a step ahead from day one. Whether you're producing your latest YouTube video or streaming your music live on Facebook, Revelator io24 is built to 'cast.
Overview
Features
- Add Revelator power and flexibility to any XLR microphone
- 2 XMAX-L mic preamps with +48V phantom power for professional XLR mics and crystal-clear sound
- 2 stereo loopback streams for mixing audio from Zoom, Skype, backing tracks, and more
- Professionally-crafted presets make you sound like a pro at the press of a button - or design, save, and share your own
- Stream Mix mode lets you create a complete stereo mix with Revelator io24 hardware inputs, effects, two channels of loopback audio, and reverb and send it to your streaming software.
- Includes Fender Studio Pro - 6 Month Trial.
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
- Universal Control v5.0 Download (Windows)
- Universal Control v5.0 Download (Mac)
- Universal Control v5.0 (Android)
- Universal Control v4.7.2.108537 Download (Mac)
- Universal Control v4.7.2.108537 Download (Windows)
- Universal Control v4.7.2.108537 (Android)
- Universal Control v4.7.1.107907 Download (Mac)
- Need an older version? Click here
Don't see what you're looking for?
Log in to your my.presonus.com account.
Highlights
Fender Studio Pro - 6 Month Trial
Your hardware registration includes a Fender Studio Pro 6 Month Trial — a great way to start recording and a powerful entryway into the Fender Studio universe. Users can upgrade to Fender Studio Pro when they're ready to take their game to the next level. Compatible with virtually all macOS, and Windows.
Analog classics under the hood.
Revelator io24 provides State Space-modeled analog processing onboard with the same Fat Channel gate, compressor, and EQ our StudioLive Series III mixers offer. Like what you hear? All processing can be printed to your recording, or just used for your monitor mix, you decide.
Ready to go live when you are.
Revelator io24’s presets are stored on the mic, so you can take your sound with you. Connect directly to your iPad Pro, or grab your Camera Connection Kit and connect your Revelator to your Lightning- or USB-C-equipped iPhone or iPad. Only Revelator brings studio-quality sound to Facebook Live, IGTV, or anywhere else you stream from your mobile device.
Specs
Connectivity
USB-C® Compatible USB 2.0 Connection
Inputs
Two - 2 x XLR/TRS Line Combo
Line Out
Two - 1/4" Balanced (Left and Right)
Phantom Power
+48 VDC, 10 mA
VoltageRequirements
100-240 VAC, 50-60 Hz
Color
Black
Product Name
Revelator io24, Black
Series
Revelator™
Instrument Inputs Frequency Response
20 Hz - 20 kHz (+0.1dB/-0.3 dB, Unity Gain, Unweighted)
Instrument Inputs Gain Range
50 dB
Instrument Inputs Maximum Level
+10 dBu (Minimum Gain)
Microphone Input Connection Type
XLR Female, Balanced
Microphone Preamp Equivalent Input Noise
-126 dBu (A-Weighted, 150Ω, Maximum Gain)
Microphone Preamp Frequency Response
20 Hz - 20 kHz (+0.1dB/-0.3 dB, Unity Gain, Unweighted)
Microphone Preamp Gain Control Range
60 dB (± 1 dB)
Microphone Preamp Input Impedance
1.4 kΩ
Microphone Preamp Maximum Input Level
+10 dBu (±0.5 dBu, Minimum Gain)
Microphone Preamp Total Harmonic Distortion
0.009% (1 kHz, -1 dBFS, Minimum Gain)
Commodity Code
8517620000
Power Cable
USB-C Cable
Software Controls
Mic Gain, Stereo Link, Loopback Mixes, Monitor Mix, Preset Management, Stream Mix Mode
Supported Sample Rates
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Headphone Outputs Frequency Response
20 Hz to 20 kHz, +0.5/-1.5 dB
Headphone Outputs Impedance Working Range
32Ω to 300Ω
Headphone Outputs Maximum Output
40 mW/Channel at 56Ω
Headphone Outputs Total Harmonic Distortion
0.01% (1 kHz, 0 dBFS, Loaded)
Main And Line Outputs Frequency Response
20 Hz - 20 kHz (+0.1dB/-0.3 dB, Unity Gain, Unweighted)
Main And Line Outputs Maximum Level
+10 dBu (1 kHz, Unity Gain, Z-Balanced)
Main And Line Outputs Total Harmonic Distortion
0.003% (1 kHz, -1 dBFS, Unity Gain)
Main Outputs Connection Type
1/4" TRS Female
DSP Features
High Pass Filter, Noise Gate / Expander, 3 Compressor Models, 3 EQ Models, and Limiter, 8 Input Digital Mixer, 3 Stereo Loopback Mixes, Stereo Monitor Mix, Doubler, Vocoder, Ring Modulator, Comb Filter, Detuner, Delay, Reverb
Digital Audio Bit Depth
24 Bit
Digital Audio Dynamic Range
105 dB
