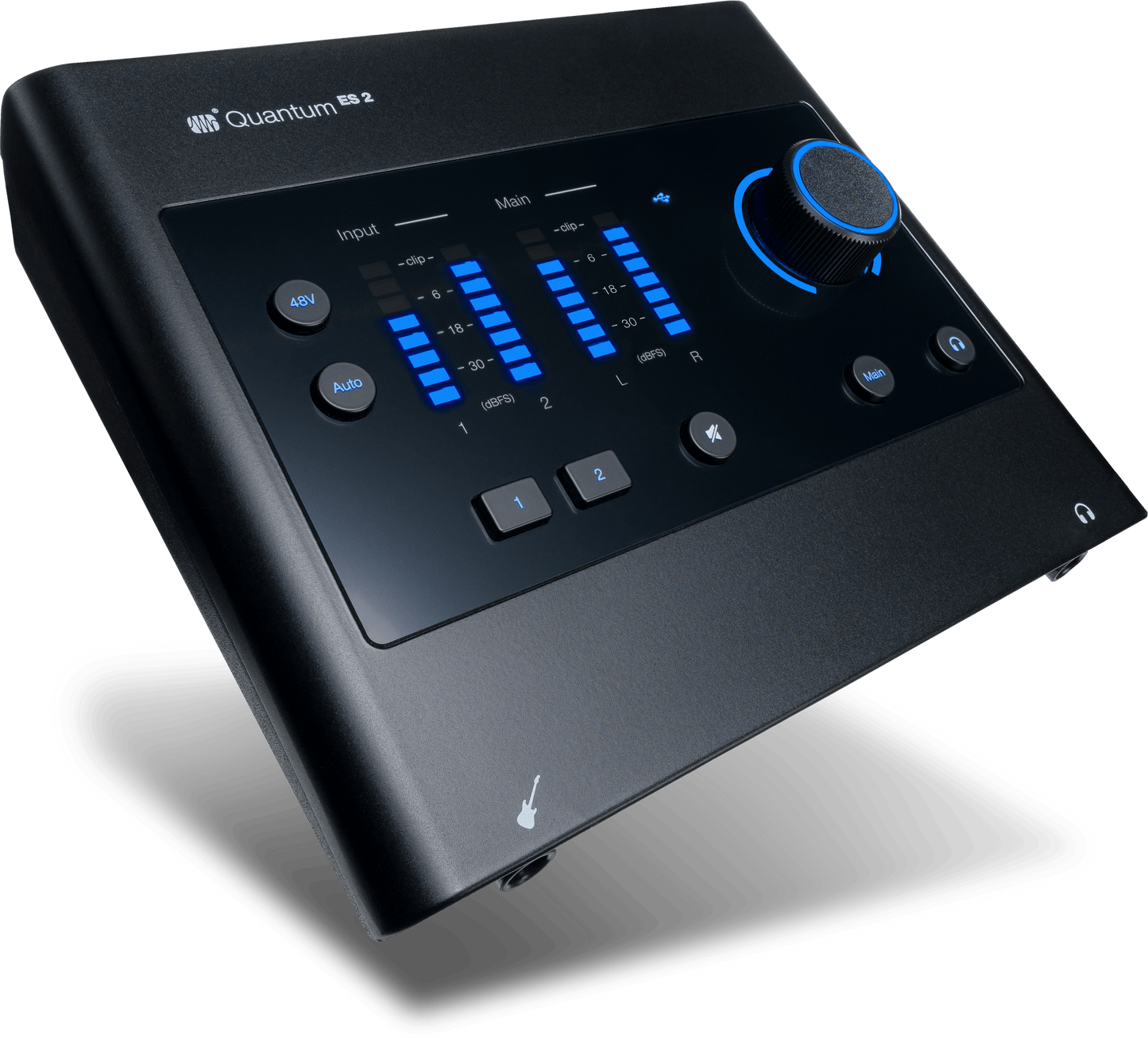

Quantum ES 2 USB-C Audio Interface
Quantum ES 2 USB-C Audio Interface
Quantum ES 2 USB-C Audio Interface
Overview
2 x 2, 24-bit / 192 kHz Recording Interface with 6-Month Studio One Pro+ Membership Included
Capture your creativity with the Quantum ES 2. The next generation of PreSonus audio interfaces, the Quantum ES 2 is the culmination of nearly 30 years of PreSonus expertise, delivering pristine preamps and class-leading converters for self-made audio creators.
Overview
Features
- High Performance Signal Flow – Custom low-latency drivers and low-noise converters.
- All-New MAX-HD Mic Preamps – The culmination of 30 years of innovation, our rigorously redesigned preamps feature digitally-controlled analog with +75 dB of gain range.
- Co-Developed with Fender® – Front-facing instrument input engineered for guitarists by industry-leading experts.
- Professional Recording Software Included – 6-months of Studio One Pro+ with full access to Studio One, add-ons, and more.
- Auto Gain – Dial in recording-ready levels, hassle-free.
- Universal Control App – Full control and metering from your mobile device, desktop, or tablet.
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
Support
Resources
Don't see what you're looking for?
Log in to your my.presonus.com account.
Specs
Accessories
Included Accessories
1.5M USB-C to USB-C cable
Electronics
Connectivity
USB-C®
Headphone Jack
One - 1/4" TRS Female Stereo
Phantom Power
+48 VDC
Voltage
120V
General
Color
Black
Product Name
Quantum ES 2 USB-C Audio Interface
Series
Quantum
Inputs
Instrument Inputs Dynamic Range
111 dB (A-Weighted, Minimum Gain)
Instrument Inputs Frequency Response
20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz)
Instrument Inputs Gain Range
75 dB
Instrument Inputs Maximum Level
+15 dBu (Unbalanced, Minimum Gain)
Line Inputs Dynamic Range
114 dB (A-Weighted, Minimum Gain)
Line Inputs Frequency Response
20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
Line Inputs Gain Range
+/- 10 dB
Line Inputs Impedance
10K Ohms
Line Inputs Maximum Level
+15 dBu (Balanced, Minimum Gain)
Line Inputs Total Harmonic Distortion
0.001% (1 kHz, Minimum Gain)
Microphone Input Connection Type
XLR Female (Combo), Balanced
Microphone Preamp Dynamic Range
113 dB (A-Weighted, Minimum Gain)
Microphone Preamp Equivalent Input Noise
-129 dBu (Maximum Gain, 150 Ohms, 22 kHz BW, A-Weighted)
Microphone Preamp Frequency Response
20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz)
Microphone Preamp Gain Control Range
75 dB
Microphone Preamp Input Impedance
1600 Ohms
Microphone Preamp Maximum Input Level
+14 dBu (Balanced, Minimum Gain)
Microphone Preamp Total Harmonic Distortion
0.001% (1 kHz, Minimum Gain)
Measurements
Product Depth
6.2" (158 mm)
Product Height
1.9" (48.3 mm)
Product Width
6.9" (175 mm)
Miscellaneous
Commodity Code
8517620000
Supported Sample Rates
44.1, 48, 88.2, 96, 176.4, 192 (kHz)
Output
Headphone Outputs Dynamic Range
111 dB (A-Weighted)
Headphone Outputs Frequency Response
20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz)
Headphone Outputs Impedance Working Range
22 Ohms
Headphone Outputs Maximum Output
7.5 dBu (50 Ohms)
Headphone Outputs Total Harmonic Distortion
0.02% (1 kHz)
Main And Line Outputs Dynamic Range
117 dB (A-Weighted)
Main And Line Outputs Frequency Response
20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
Main And Line Outputs Maximum Level
+15 dBu (Balanced)
Main And Line Outputs Output Impedance
51 Ohms
Main And Line Outputs Total Harmonic Distortion
0.001% (1 kHz, +4 dBu)
Main Outputs Connection Type
1/4" TRS Female
Performance
Digital Audio Bit Depth
24-bit
Digital Audio Dynamic Range
120 dB
